30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter

PVkingdom (Chongqing) New Energy Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

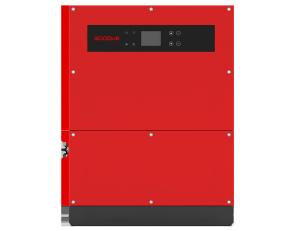

30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter

  • 1
  • 2
  • 3

Brand Name : Goodwe

Model Number : GW30KLV-MT

Certification : SAA / CE / ROHS / ISO9001 / CCC

Place of Origin : China

MOQ : 10 units

Price : negotiable

Supply Ability : 1000units/week

Packaging Details : carton package

Type : DC/AC Inverters

Phase : Three Phase

Inverter Efficiency : 98.8%

Input Voltage : 180-1500V

Output Frequency : 50/60Hz

Protection degree : IP65

Operating Altitude : 4000(>3000 derating)

Operation Temperature Range : -30~60℃

User Interface : LED, Bluetooth+APP

PID recovery : optional

Contact Now

LVMT GW30KLV-MT 30kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter

30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv InverterLVMT Series
Technical Data GW30KLV-MT GW35KLV-MT GW50KLV-MT
Input
Max. Input Voltage (V) 800
MPPT Operating Voltage Range (V) 200 ~ 650
Start-up Voltage (V) 200
Nominal Input Voltage (V) 370
Max. Input Current per MPPT (A) 33 / 33 / 22 / 22 33 44
Max. Short Circuit Current per MPPT (A) 41.5 / 41.5 / 27.5 / 27.5 41.5 55
Number of MPP Trackers 4
Number of Strings per MPPT 3 / 3 / 2 / 2 3 4
Output
Nominal Output Power (W) 30000 36000 50000
Nominal Output Apparent Power (VA) 30000 36000 50000
Max. AC Active Power (W) 28800@208V;
30000@220V;
33000@240V;
34500@208V;
36000@220V;
39900@240V;
47300@208V;
50000@220V;
55000@240V;
Max. AC Apparent Power (VA) 33000 39900 55000
Nominal Output Voltage (V) 220, 3L / N / PE or 3L / PE
Nominal AC Grid Frequency (Hz) 50 / 60
Max. Output Current (A) 80.0 96.0 133.0
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
Efficiency
Max. Efficiency 98.7% 98.8% 98.7%
European Efficiency 98.3% 98.5% 98.3%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Optional
DC Surge Protection Type II
AC Surge Protection Type II
AFCI Optional
PID Recovery Optional
General Data
Operating Temperature Range (ºC) -30 ~ +60
Relative Humidity 0 ~ 100%
Max. Operating Altitude (m) 4000
Cooling Method Fan Cooling
User Interface LED, LCD (Optional), WiFi + APP LED, LCD (Optional), WiFi + APP LED, WiFi + APP
Communication RS485, WiFi (Optional) RS485, WiFi (Optional) RS485, WiFi, PLC (Optional)
Weight (kg) 59.0 64.0 70.0
Dimension (W × H × D mm) 586 × 788 × 264 586 × 788 × 264 586 × 788 × 267
Topology Non-isolated
Self-consumption at Night (W) <1
Ingress Protection Rating IP65



30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter
30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter
30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter
30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter
30kW Goodwe On Grid Inverter LVMT GW30KLV-MT Three Phase Pv Inverter
